Product Name: Disposable electronic bronchoscope catheter
Model specifications: HY-YZQ 2.0, HY-YZQ 2. 5 , HY-YZQ 4.5, HY-YZQ 5.3

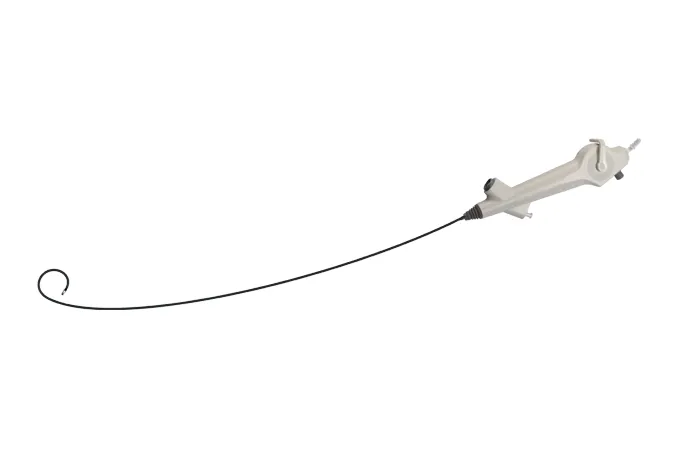

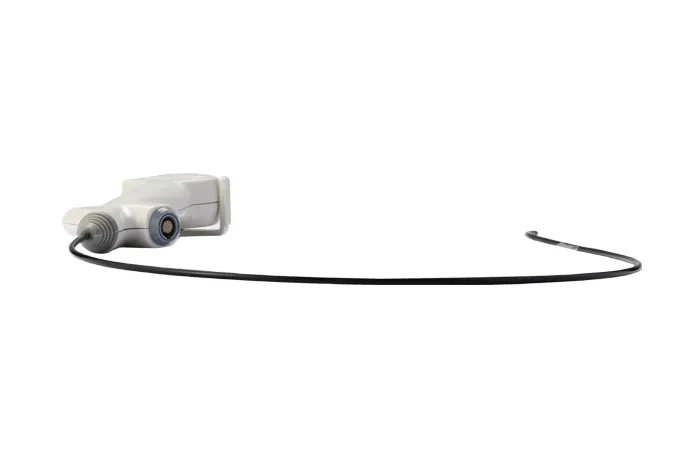

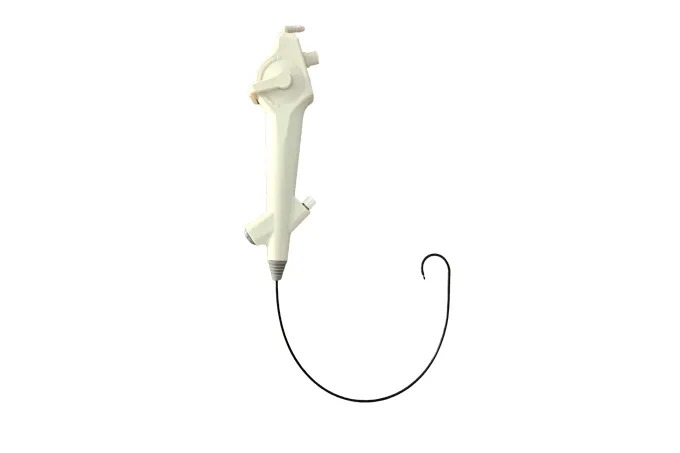

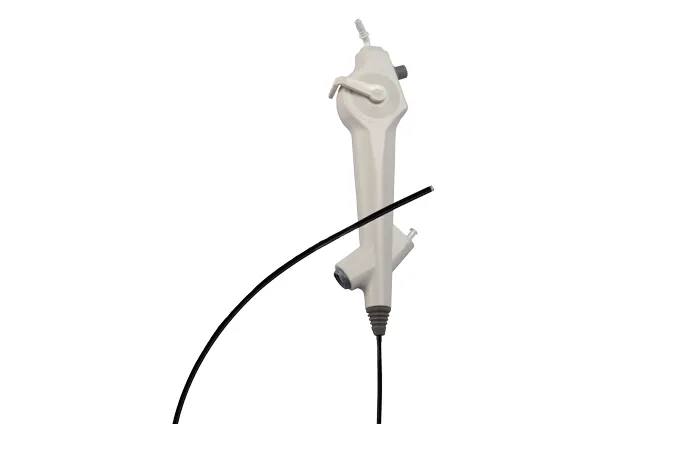

Haiye HY-YZQ series single-use digital flexible bronchoscope is a disposable handheld flexible electronic endoscope consisting of an electronic bronchoscope, a perfusion plug and an optional accessory waterproof cover.
It is used in conjunction with the image processor（HY-TS13，HD3b） produced by our company to provide the necessary images for medical institutions to observe, diagnose, photograph and treat the trachea and bronchus of adults and children over 3 months old .
Haiye single-use digital flexible bronchoscope can avoid cross infection.
Help doctors more accurately judge the condition and perform surgery by Haiye HY-YZQ series single use digital flexible bronchoscope.
Consider the doctor's practice, small diameter and flexible handling, easy access to the human body cavity, reducing the patient's pain and recovery time.
Advanced waterproof and anti-fog technology by Haiye.
| Field angle | 120°, tolerance ±10% |
| Feild depth | 3~100 mm |
| Rotation | up 0°to 180°, down 0°to 130° |
| Camera | CMOS electronic imaging |
| Instrument channel | 1.2mm~ 2.8mm (≥Ø1.0mm, HY-Z02.0 not compatible) |
| Length of insert part | 600mm, tolerance ±5% |
